EV Charging Adapter

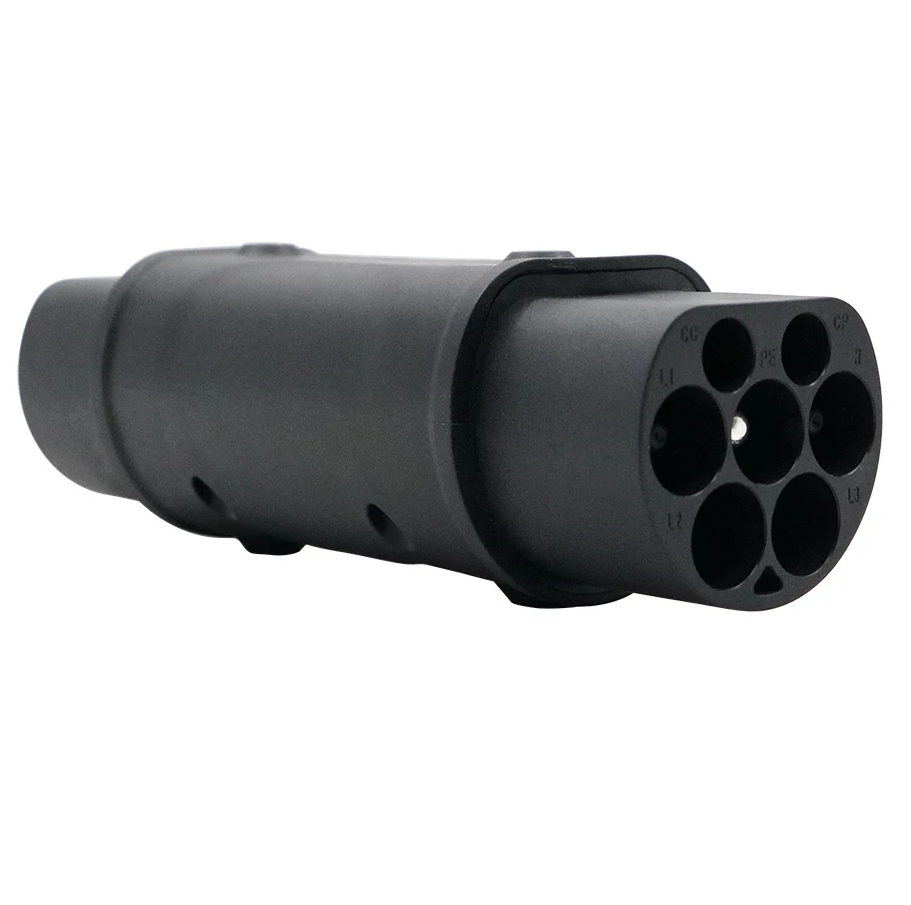

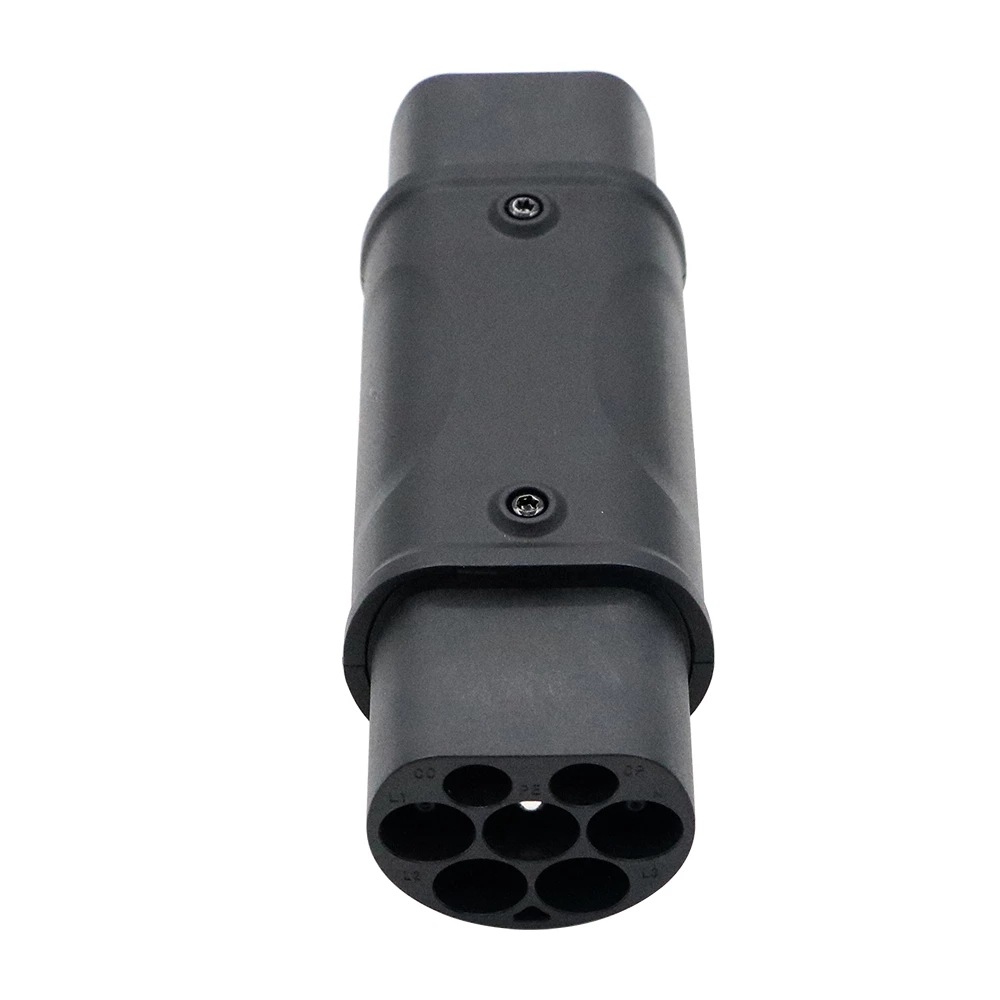

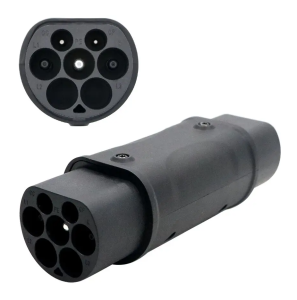

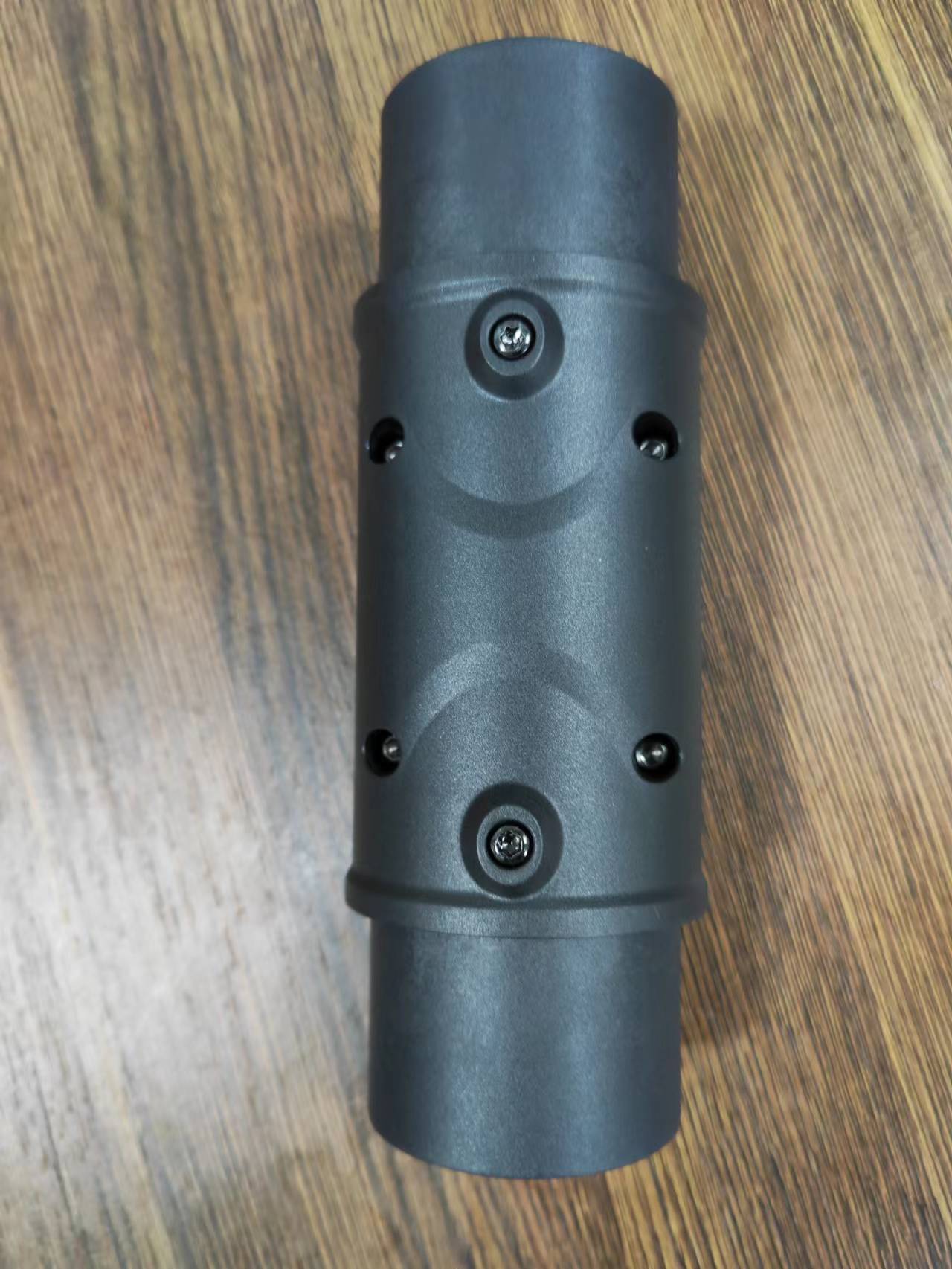

Type 2 To GBT EV Charging Adapter for GBT EV
With quality materials, reliable electrical performance and flexible OEM & ODM options, our adapters are suitable for EV charger manufacturers, distributors, installers and charging solution providers.
- Rated Output Current 32A
- Operation Voltage: 220V ~ 380V AC
- Long Mechanical life, No-Load Plug In / Pull Out ＞10000 Times
- Working temperature: -30°C ~+50°C

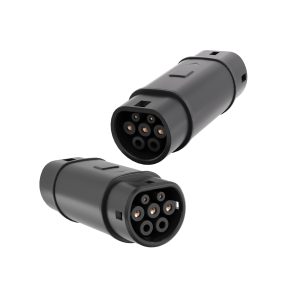

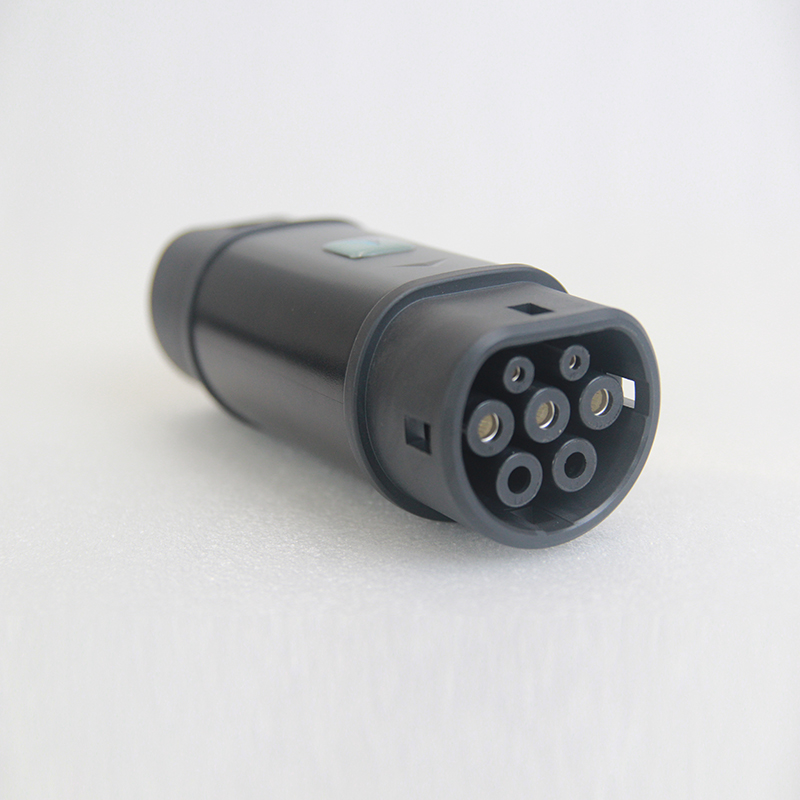

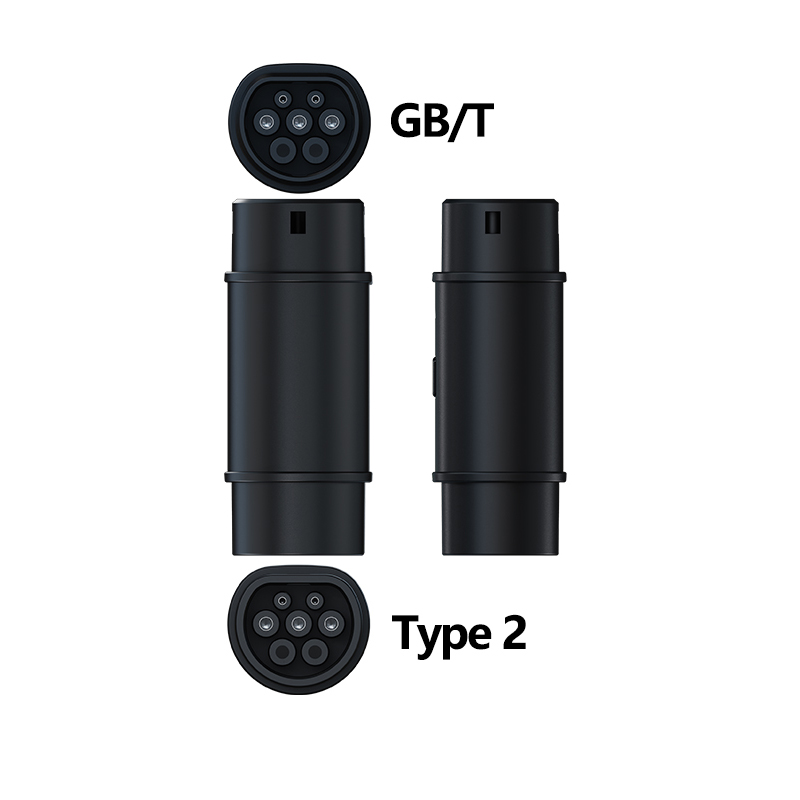

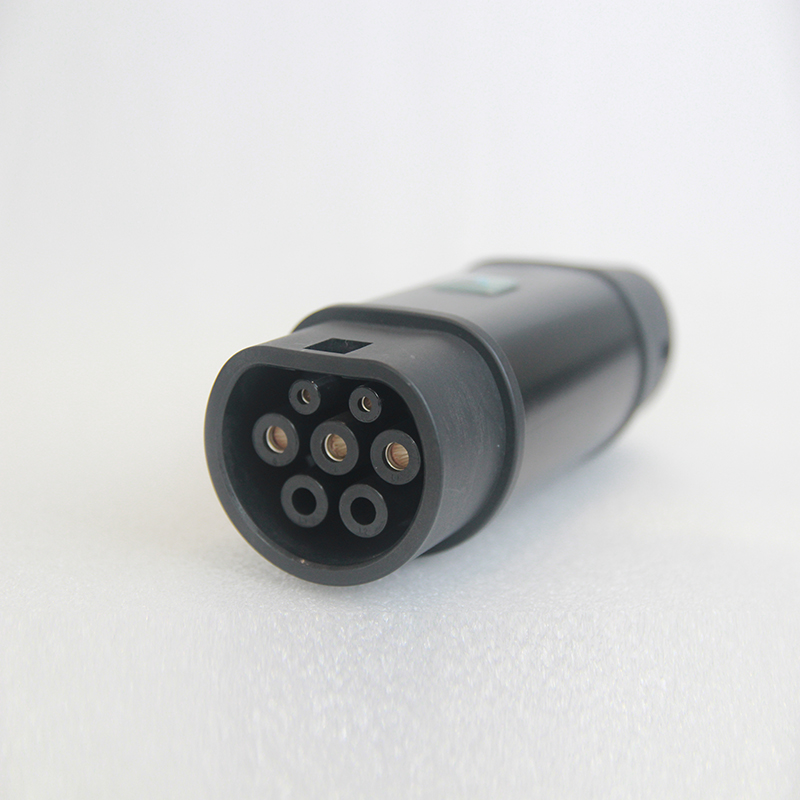

GBT To Type 2 EV Charging Adapter for Type 2 EV
With quality materials, reliable electrical performance and flexible OEM & ODM options, our adapters are suitable for EV charger manufacturers, distributors, installers and charging solution providers.
- Rated Output Current 32A
- Operation Voltage: 220V ~ 380V AC
- Long Mechanical life, No-Load Plug In / Pull Out ＞10000 Times
- Working temperature: -30°C ~+50°C
Product Details
Our EV charging adapters are designed to provide flexible and reliable connections between different charging standards, connectors and EV applications. We offer a range of solutions for Type 1, Type 2, CCS1, CCS2, GBT, Tesla and other charging configurations, helping customers improve compatibility across different vehicles and charging system.
| Rated Current | 32A |
| Operation Voltage | 220V ~ 380 V AC |
| Contact Resistence | 0.5mΩ Max |
| Terminal Temperature Rise | ＜50K |
| Insulation Resistence | ＞1000 MΩ(DC 500V) |
| Withstand Voltage | 2000 V |
| Shell Material | UL94 V-0 fireproof and cold-resistant PC material |
| Mechanical Life | No-Load Plug In / Out ＞10000 Times |
| Operating Temperature | -30°C ~ +50°C |
| Coupled Insertion Force | 45N ＜ F ＜ 80N |
| Weight | About 1 KG |
FAQ
What's your delivery terms?
Normal Samples will be delivered within 3 days.
Customized samples will be delivered about 7-8 days.
Bulk order will be delivered about 2-3 weeks as per the quantity .
Can you customize for samples?
Yes, we offer Customize service , even for several pcs of samples.
How to Use EV Charger?
User Manual will be delivered together with EV Chargers.
