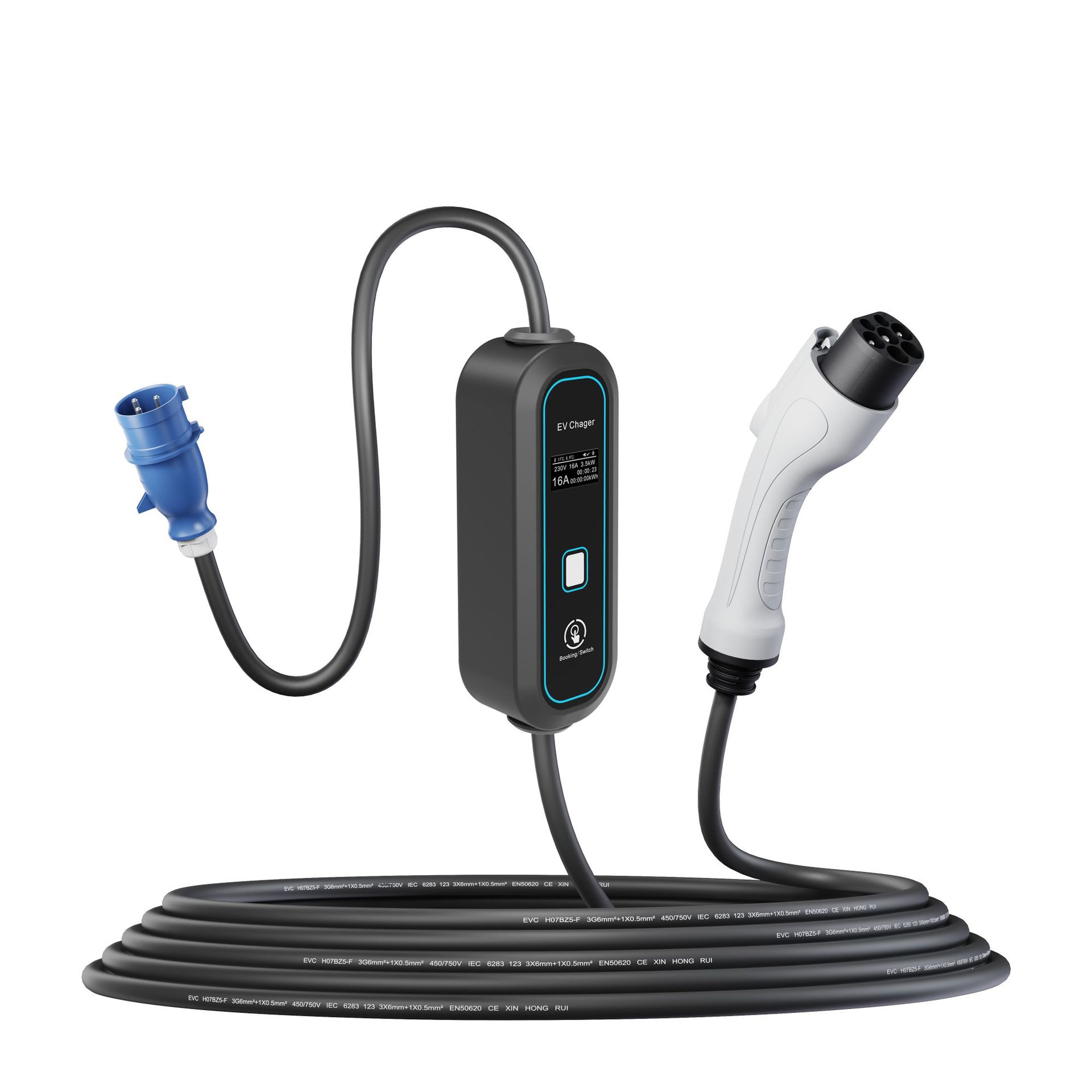

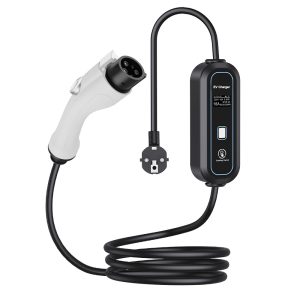

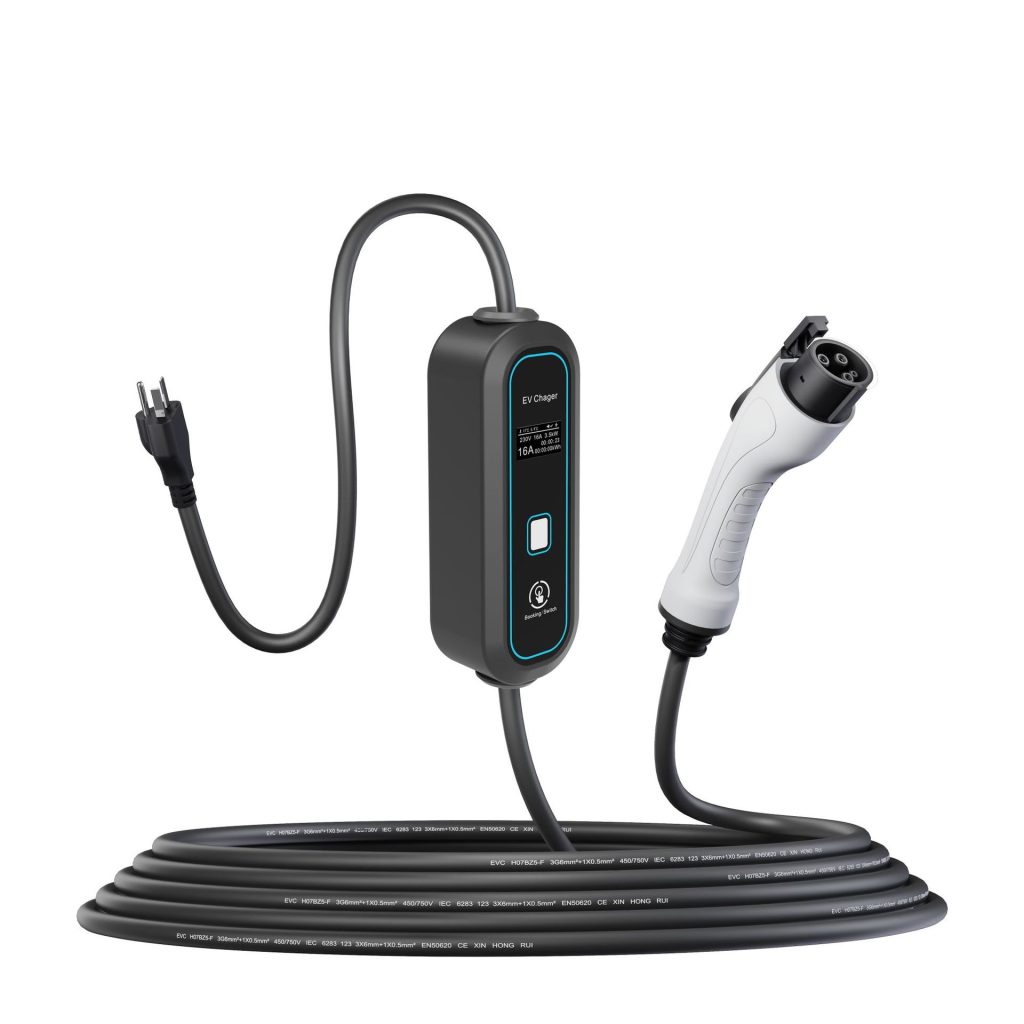

Portable EV Charger
Single Phase 16A 32A Portable Charger with GB/T Type 2 Charging plug
Portable EV Chargers are compact, plug-and-play charging solutions designed to provide flexible electric vehicle charging wherever power is available.We are a professional supplier of portable EV chargers, specializing in R&D, manufacturing, and customized solutions.
- APP Control via Wifi/Bluetoth or Manual operate
- Operating voltage: 250V AC
- ABS and PC Flame Retardant Grade UL94 V-0
- Long Mechanical life, No-Load Plug In / Pull Out ＞10000 Times
- Working temperature: -25°C ~+50°C
- GB/T, IEC62196, SAE J1772 and NACS standards compliance
Product Details
Our portable EV charger , compatible with GB/T, Type 2, Type 1 and Tesla EV Charging requirement, all mainstream charging management platforms. Operators can remotely monitor, authorize charging and manage billing without vendor lock-in.
It adopts high-quality flame-retardant and wear-resistant shell material with IP65 /IP67 waterproof and dustproof rating, adapting to outdoor parking lots, highway service stations and home garlands in all weather conditions.
| Rated Current | 8A / 10A/ 13A /16A / 20A/ 24A / 32A ( adjustable current ) | ||||
| Rated Power | 3.5KW / 7 KW | ||||
| Operation Voltage | AC 250 V | ||||
| Rate Frequency | 50Hz/60Hz | ||||
| Leakage Protection | Type A RCD +DC 6mA ( Optional ) | ||||
| Display Screen | 1.3 Inch | ||||
| Cable length | 3M/ 5M/ 10M | ||||
| Housing Colour | Customized | ||||
| Shell Material | ABS and PC Flame Retardant Grade UL94 V-0 | ||||
| Mechanical Life | No-Load Plug In / Pull Out ＞10000 Times | ||||
| Operating Temperature | -25°C ~ +55°C | ||||
| Storage Temperature | -40°C ~ +80°C | ||||
| Protection Degree | IP65 / IP67 | ||||
| EV Control Box Size | 210mm (L) X 75mm (W) X 45mm (H) | ||||
| Weight | ≤ 5 KG | ||||
| Screen Display | Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged | ||||
| Standard | GB/T, IEC 62196, SAE J1772, NACS, UL2594, UL2231-2 | ||||
| Certification | TUV, CE, FCC Approved | ||||
| Protection | 1.Over Current protection; 2. Over and under Voltage Protection; 3. Leakage Current Protection (restart recover); 4. Over Temperature Protection; 5.Overload protection (self-checking recover); 6. Ground Protection and Short circuit protection; | ||||
FAQ
What's your delivery terms?
Normal Samples will be delivered within 3 days.
Customized samples will be delivered about 7-8 days.
Bulk order will be delivered about 2-3 weeks as per the quantity .
Can you customize for samples?
Yes, we offer Customize service , even for several pcs of samples.
How to Use EV Charger?
User Manual will be delivered together with EV Chargers.
