EV Charging Cable

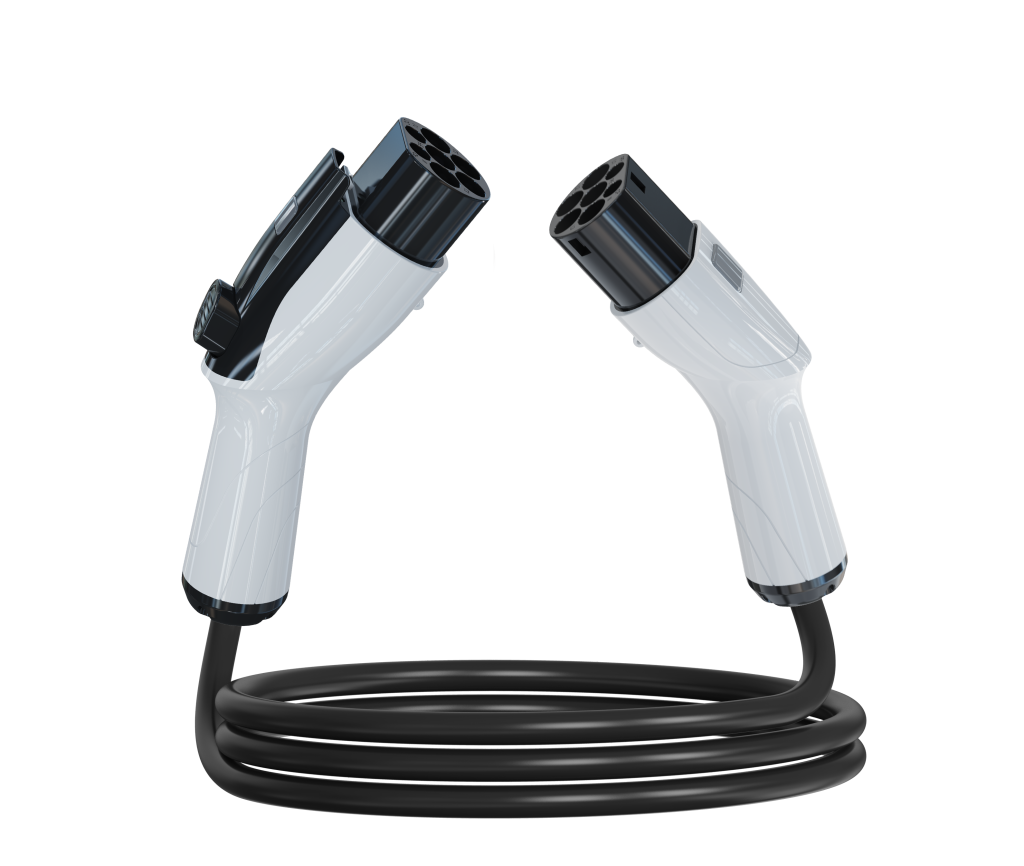

Type 2 To GBT EV Charging Cable for home charging commercial public charging
EV Charging cables act as the primary physical bridge for power and data transmission between a power source and an EV. High-quality cables offer essential advantages in safety, durability, energy efficiency, and operational flexibility across residential, commercial, and public infrastructure
- Operating voltage: 250V ~ 380V AC
- Flame Retardant Grade UL94 V-0
- Long Mechanical life, No-Load Plug In / Pull Out ＞10000 Times
- Working temperature: -30°C ~+50°C
- IEC62196, GB/T standard compliance
Product Details
Our product range covers AC and DC charging cables, including Type 1, Type 2, CCS2 , CCS1, Tesla, NACS, ChaDeMo and other configurations for different applications.Designed for reliable electrical performance and durability, our cables can be customized in length, current rating, connector type and other specifications according to project requirements. With flexible OEM and ODM support, we help B2B customers for their products and target markets.
| Rated Current | 16A, 32A |
| Operation Voltage | AC 250V ~ 380V |
| Insulation Resistance | >500MQ(DC500V) |
| Withstand Voltage | 2000V |
| Pin Material | Copper Alloy, Silver Plating |
| Shell Material | Thermoplastic,Flame Retardant Grade UL94 V-0 |
| Mechanical Life | No-Load Plug In / Pull Out ＞10000 Times |
| Contact Resistance | 0.5mΩ Max |
| Terminal Temperature Rise | ＜50K |
| Operating Temperature | -30°C~+50°C |
| Impact Insertion Force | >300N |
| Waterproof Degree | IP55 |
| Cable Protection | Reliability of materials, antiflaming, pressure-abrasion resistance,impact resistance and high oilresistant, |
| Standard | IEC62196, GB/T |
| Applications | GB/T EV |
FAQ
What's your delivery terms?
Normal Samples will be delivered within 3 days.
Customized samples will be delivered about 7-8 days.
Bulk order will be delivered about 2-3 weeks as per the quantity .
Can you customize for samples?
Yes, we offer Customize service , even for several pcs of samples.
How to Use EV Charger?
User Manual will be delivered together with EV Chargers.
